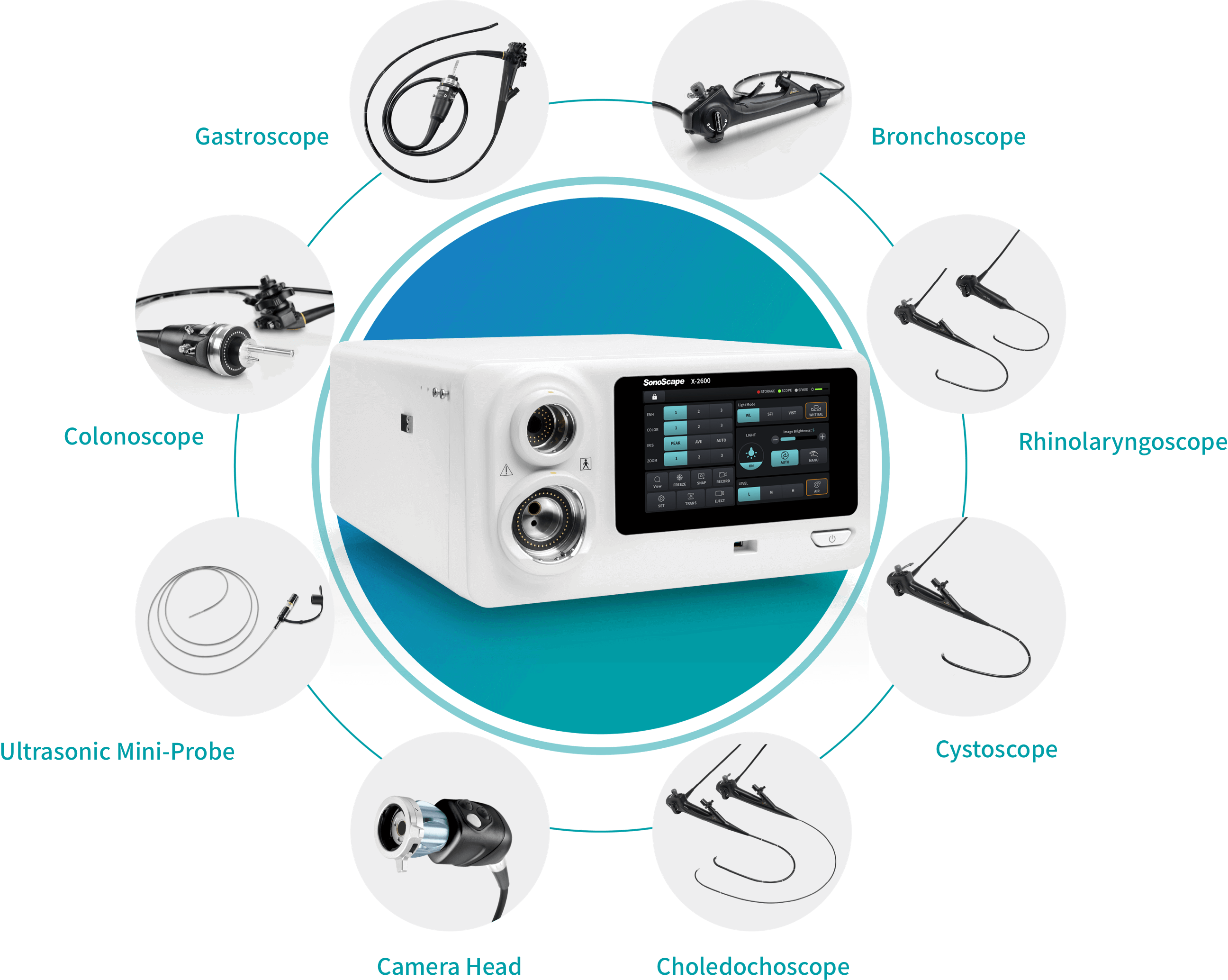

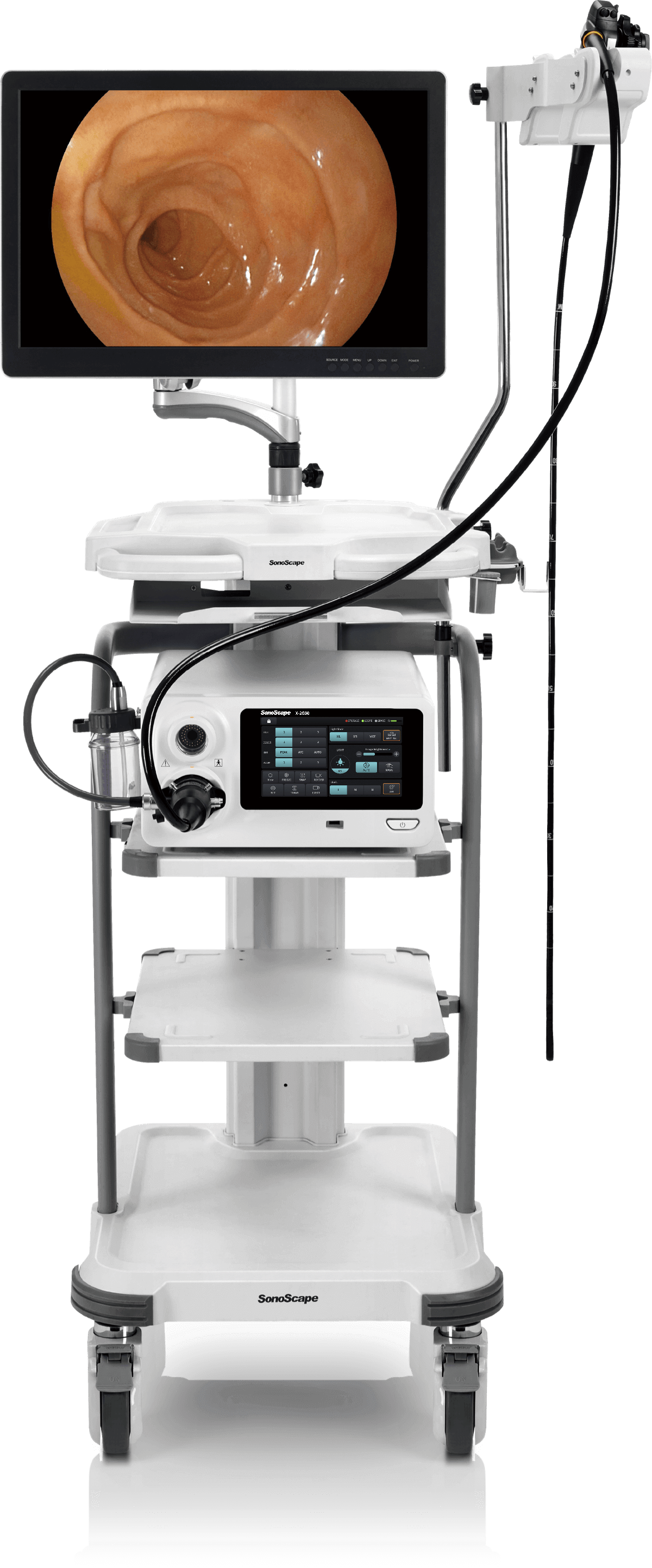

The X-2600 series is a compact system compatible with GI scopes, camera heads, and
surgical flexible endoscopes. It allows doctors to quickly switch endoscopes based on
clinical needs, effectively adapting to different clinical scenarios.

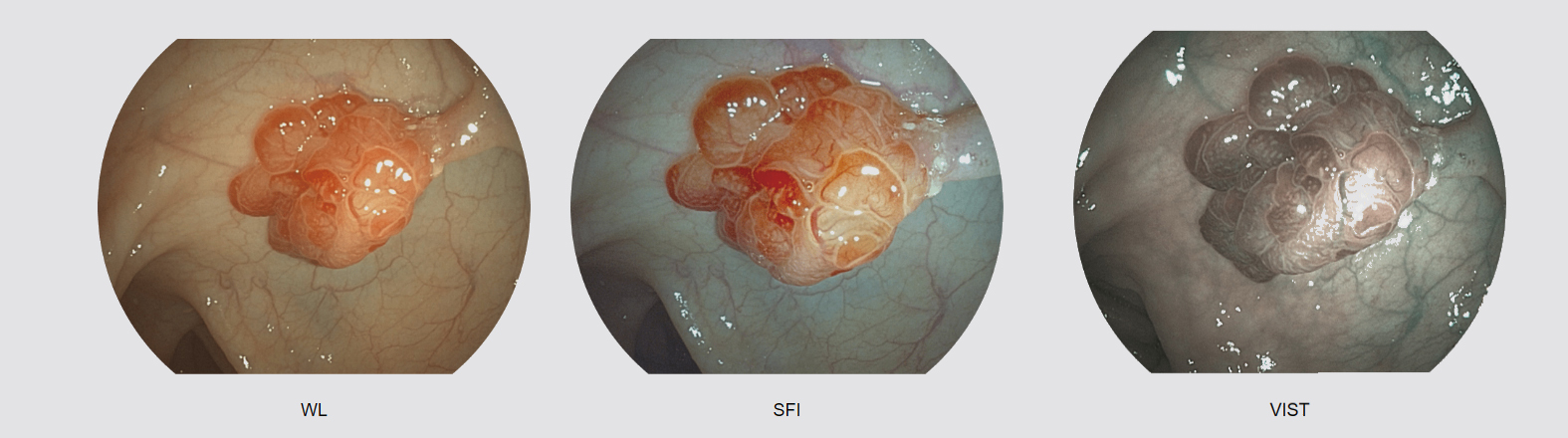

Equipped with SonoScape's unique chromoendoscopy SFI and VIST mode, presenting
mucosal details and lesion features.
Spectral Focused lmaging (SFI)Images under the SFI mode enjoy high brightness and enhanced color contrast of mucosal blood vessels,
facilitating both middle-and far-distance observation. This capability supports the detection and demarcation
of the lesion and the diagnosis of early digestive tract diseases.
Versatile Intelligent Staining Technology (VIST)The VIST mode emphasizes the superficial mucosal structure while ensuring brightness and enhancing the
color contrast between superficial microvessels and mid-layer blood vessels, making the lesion boundaries clearer.
Support 1080P video output, providing excellent image.
Optimize the adjustment of light level and image brightness.
Enhance images while reducing noise to highlight the contours of tiny lesions and improve detection rates.
Adjust the distinction between the light and dark areas in the image.
Equipped with a multi-spectrum light source, the average life span can reach 50,000 hours.

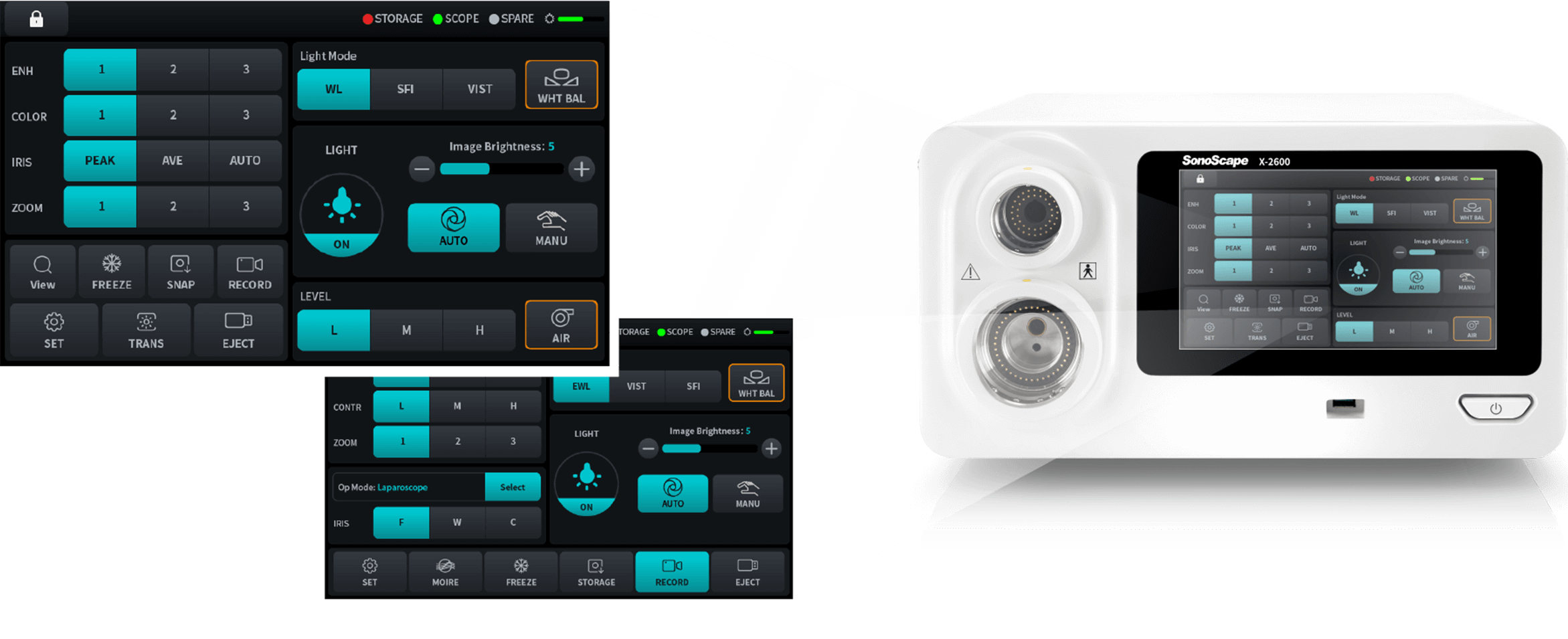

The touch-screen-designed front panel allows users to easily adjust various parameters
and select the expected functions, improving human-machine interaction and ease of
Smart Screen Lock
Accidental Touch Prevention
Unique interfaces for flexible endoscopes and camera heads. Automatic Scope Recognition
X-2600’s powerful chip allows an optimal image adjustment without delay, and outputs sharp, true-to-colour images. This outstanding and stable visual field creates an excellent visualising experience, enabling easier and finer operations.
SonoScape’s chromo endoscopy SFI/VIST technology combines optical and digital image processing. Just like in procedures on humans, it enhances the details of the mucosa and the blood vessels. With this added information, SFI/VIST may help you in lesion detection and in-vivo diagnosis.

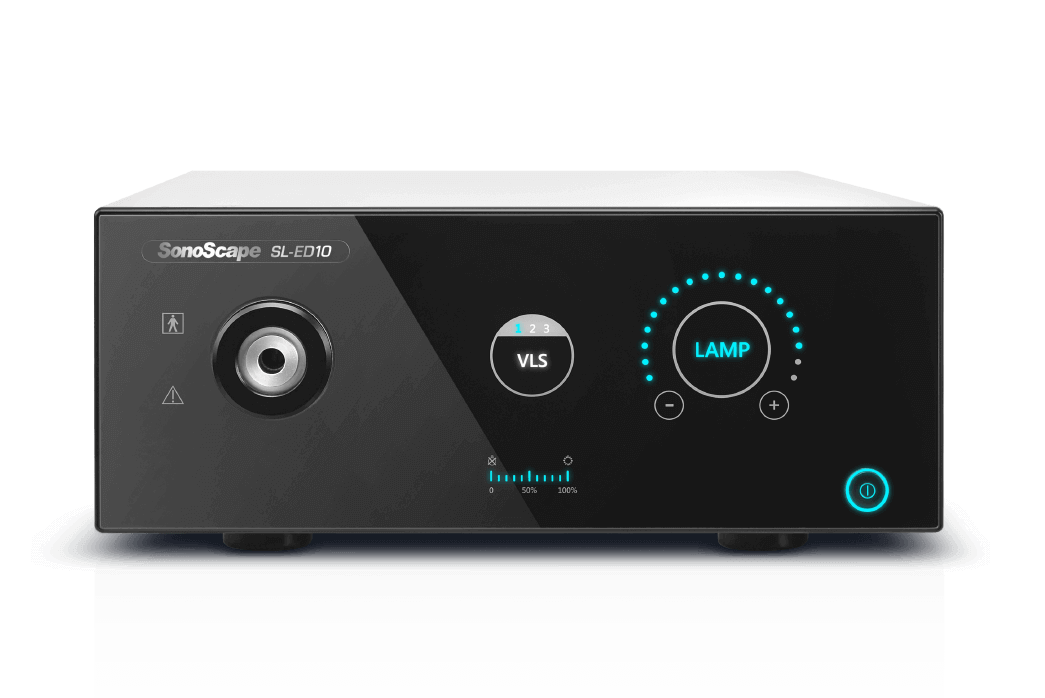

Paired light source employs a 2-LED light source with a lifespan of over 50,000 hours. You will obtain a noticeably brighter, high-quality image with minimal light loss and maximal mucosal details. Small vessels can be clearly observed under the enhanced White Light mode.
Thanks to the one-of-a-kind tactile control panel, interacting with X-2600 can't be easier. The system comes with all essential features adjustable directly from the front panel, with a one-tap screen lock. Additionally, the built-in recording function is compatible with both USB drives and hard disks, offering greater convenience and cost-efficiency.

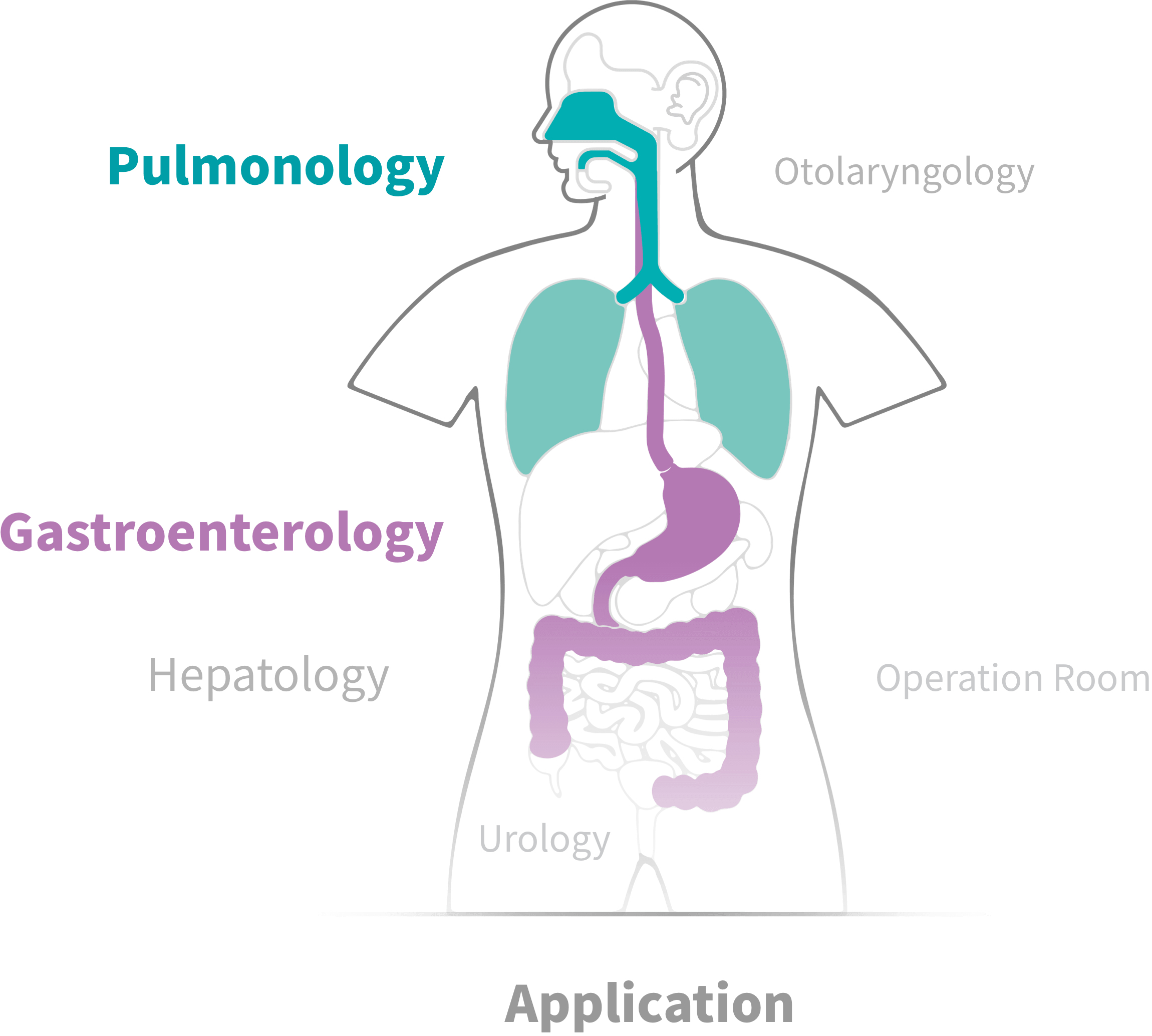

| Gastroenterology | Pulmonology |
|---|
| EG-X20 | EC-X20 | EC-X20L | EB-X20 | EB-X20T | |
| Field of view [º] | 145 | 145 | 145 | 120 | 120 |
| Depth of field [mm | 2-100 | 2-100 | 2-100 | 2-100 | 2-100 |
| Distal End Dia. [mm] | 9.3 | 12 | 12 | 4.9 | 5.9 |
| Insertion Dia. [mm] | 9.3 | 12.5 | 12.5 | 4.9 | 5.9 |
| Instrument Dia. [mm | 2.8 | 3.8 | 3.8 | 2.0 | 2.8 |
| Angulation [º] | U/D:210/120 L/R:100/100 | U/D:180/180 L/R:160/160 | U/D:180/180 L/R:160/160 | U/D:180/130 L/R:120/120 | U/D:180/130 L/R:120/120 |
| Working length [mm] | 1050 | 1350 | 1700 | 600 | 600 |
ENL=Video Rhinolaryngoscope ECH=Video Choledochoscope ECY=Video Cystoscope EUC=Video Ureteroscope
*Products that are currently CE-approved.
Please contact SonoScape sales representatives for details on upcoming X-2600 compatible endoscopes
| Endosurgical |
|---|
| ENL-X20 | ENL-X20T | ECH-X20 | ECY-X20 | EUC-X20S | |
| Field of view [º] | 120 | 120 | 120 | 120 | 90 |
| Depth of field [mm] | 2-50 | 2-50 | 3-100 | 3-50 | 1.5-50 |
| Distal End Dia. [mm] | 3.9 | 4.8 | 4.8 | 8.1Fr (2.7mm) | 8.5Fr (2.83mm) |
| Insertion Dia. [mm] | 3.6 | 4.9 | 5.1 | 16.5Fr (5.5mm) | 8.4Fr (2.8mm) |
| Instrument Dia. [mm] | / | 2.0 | 2.2 | 6.6Fr (2.2mm) | 3.6Fr (1.2mm) |
| Angulation [º] | U/D:130/130 | U/D:130/130 | U/D:160/130 | U/D:220/130 | U/D:275/275 |
| Insertion Tube Rotation[°] | / | / | / | / | L/R:120/120 |
| Working length [mm] | 300 | 365 | 450 | 380 | 670 |
| Video output | 1080p, DVIx2, SDIx2 |
| Light source | 2-LED lamps, ≥50,000 hours |
| User interface | 8-inch touch screen |
| Storage | Picture/Video recording on portable USB memory |
| Digital zoom | Up to x4.0 |
| White balance t | Auto & memory |
| Brightness adjustment | Automatic gain control (GAIN) |
| Brightness | Auto/Manual, 1-19 levels |
| Voltage | 100–240 V AC |
| Frequency | 50/60 Hz |
| Rated input | 350 VA |
| Dimensions [L x W x H/weight] | 492 x 373.5 x 205 mm/16.7 Kg |
| Types of camera head | |
|---|---|
| 10.110.201 | Focal lens 19-38mm, up to x2.0 |
| 10.111.201 | Focal lens 18mm Focal lens |
| 10.112.201 | 32mm Focal lens 18mm |
| 10.100.201 |

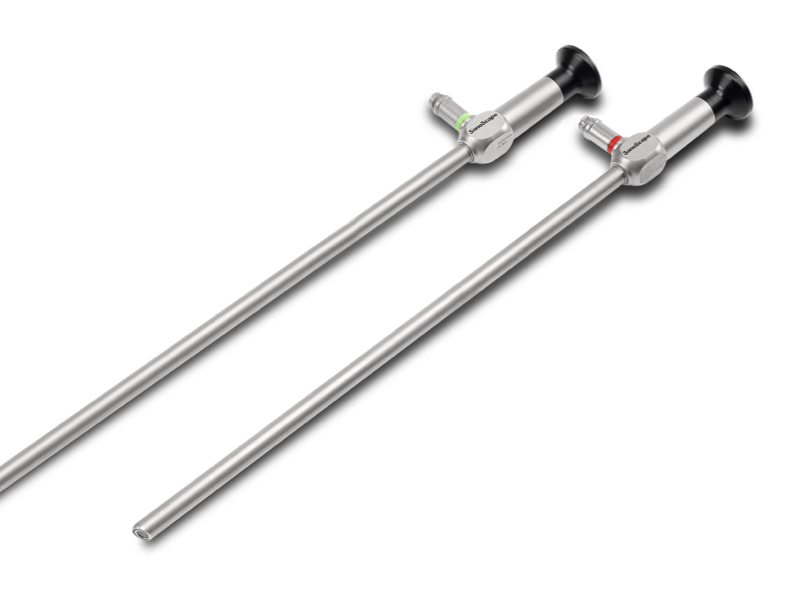

| TelescopeΦ | 10.0 mm Scope | 10.0 mm Scope |
| Working length | pe 307 mm | 307 mm |
| Direction of view | 0° | 30° |
| Field of view | wide angle | wide angle |
| Sterilisation | Autoclavable | Autoclavable |

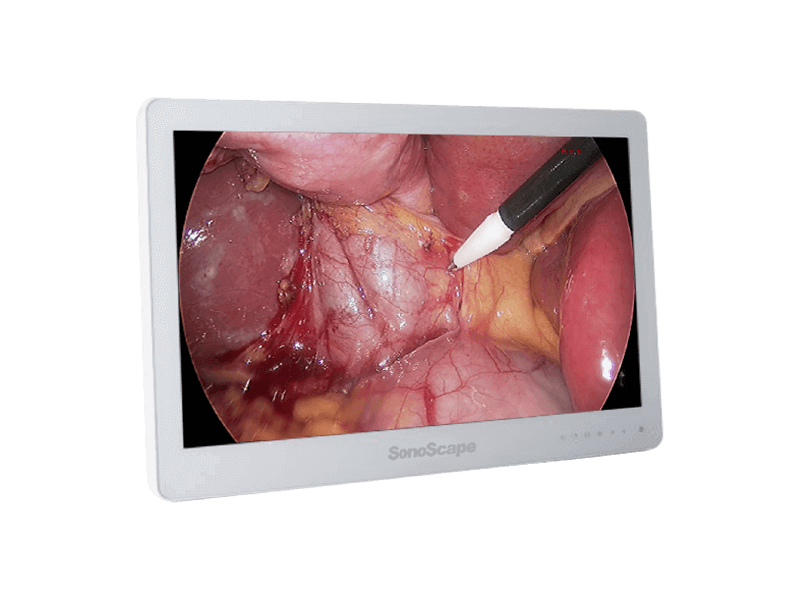

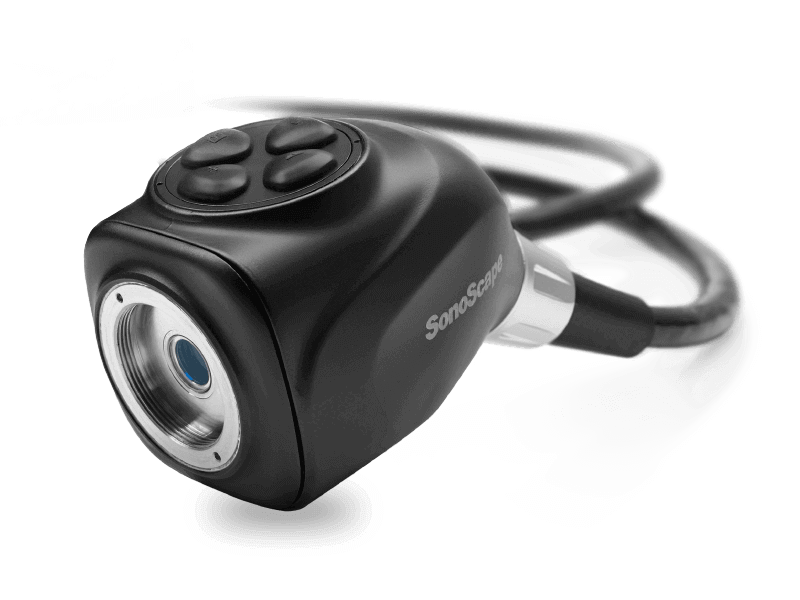

3CMOS, 1920*1080P output with 60 fps FULL HD resolution, providing optimally defined surgical field of view,
enhancing the surgeon’s visual experience, and supporting the approach to delicate procedures with ease.

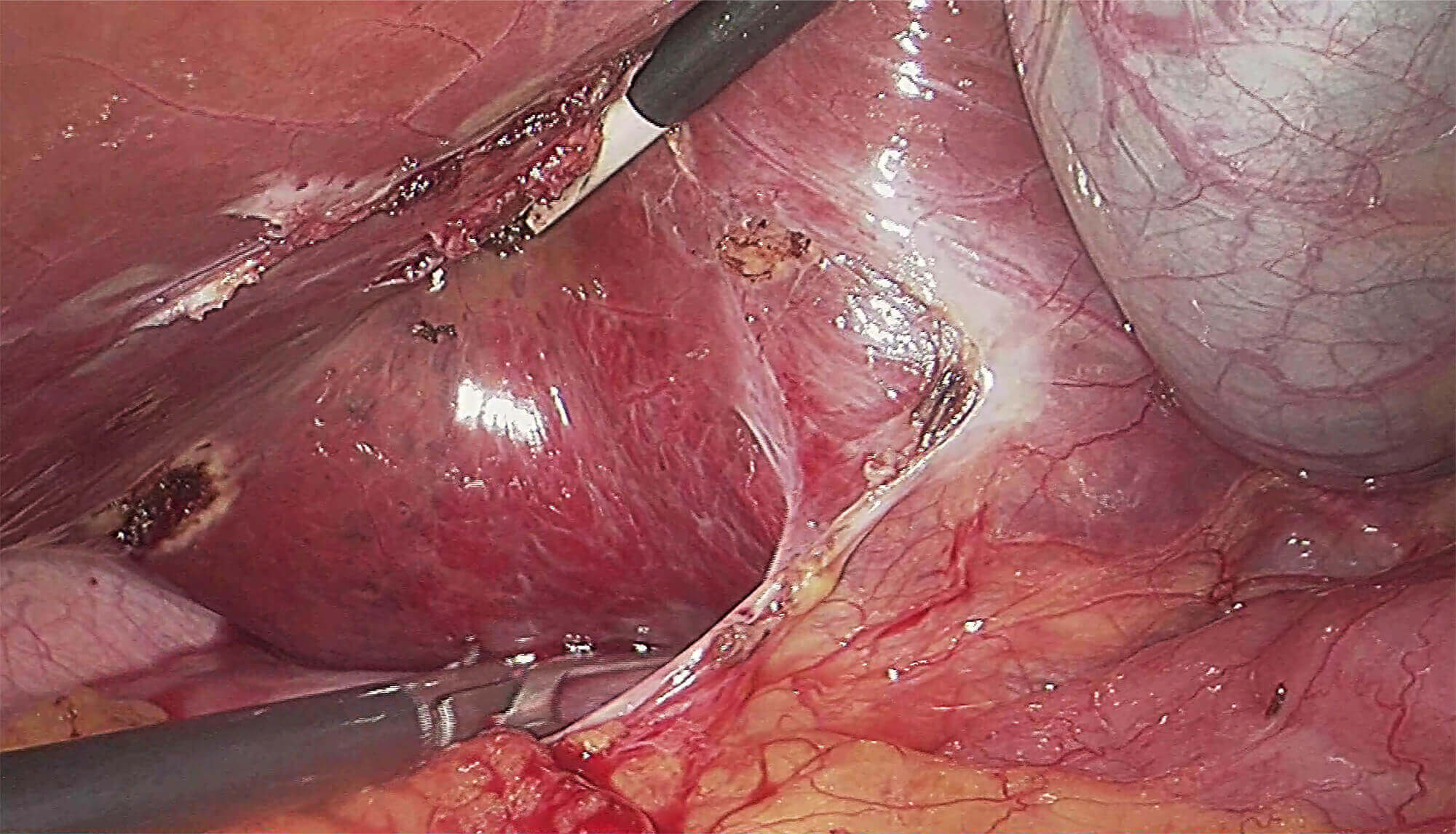

Image Resolution with Progressive Definition

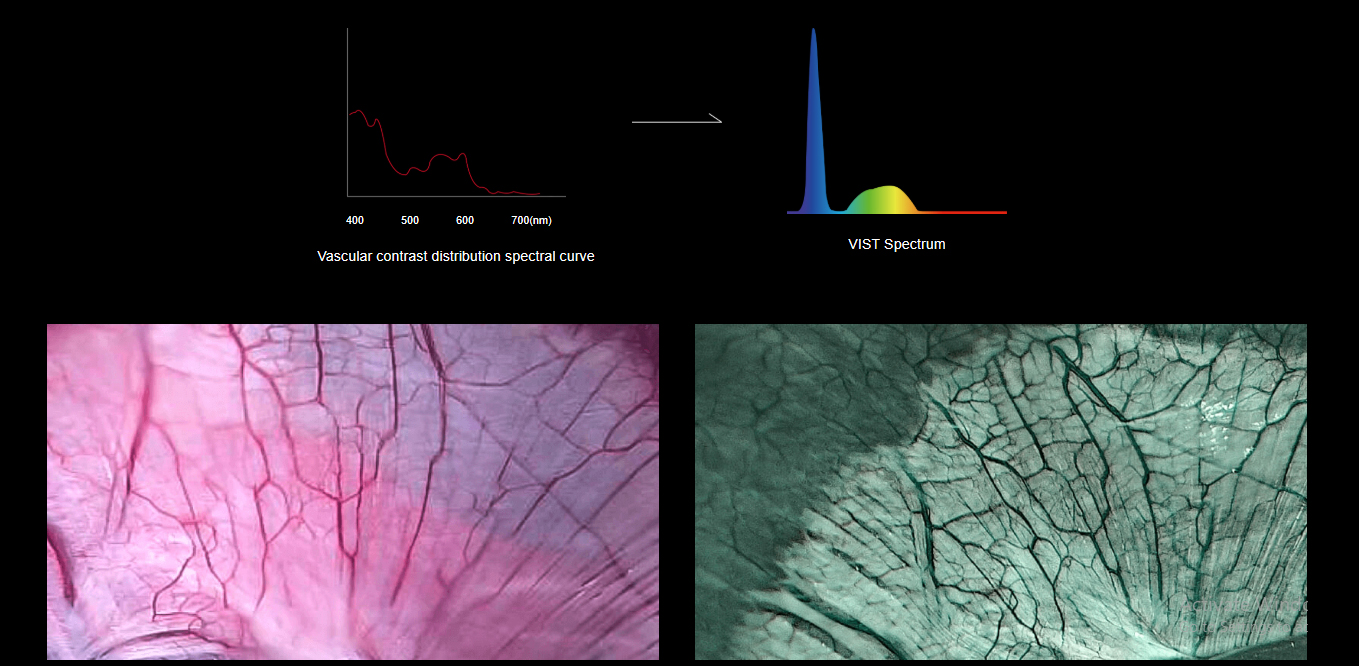

A versatile yet intelligent staining imaging system based on the principles of variable absorption coefficients
of hemoglobin to different light wavelengths, offering both electron and optical dyeing functions.
VIST enhances the details of the mucosa and blood vessels, providing improved lesions detection and in vivo diagnosis.

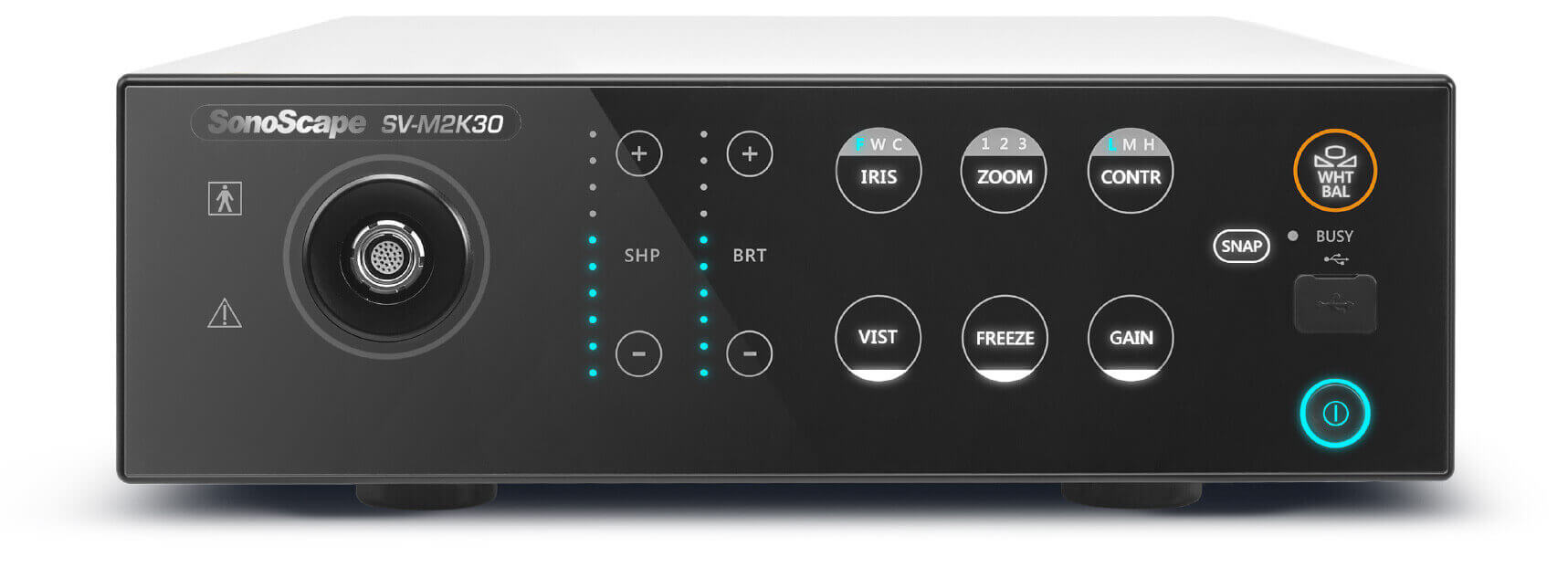

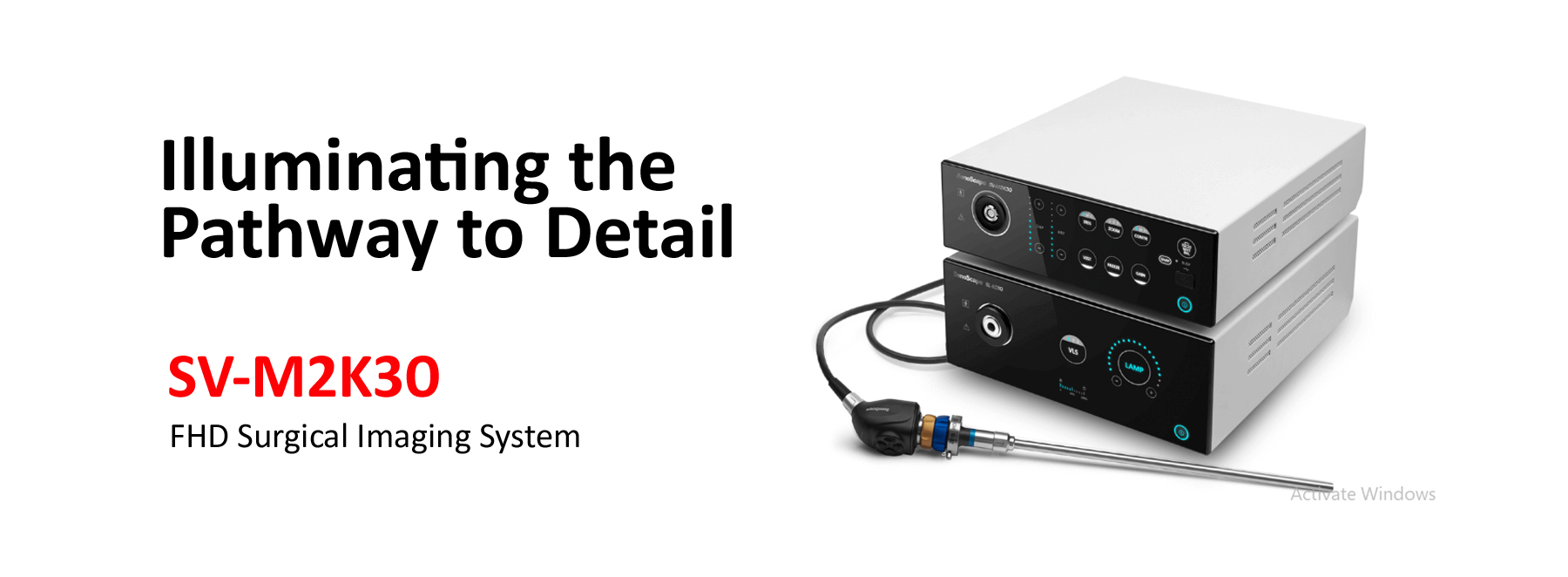

SV-M2K30
Offering two cold light source options, the xenon light source is brighter and closer to natural light, the image
projection lighting effect promises to be realistic and more hierarchical. The LED light source ensures high intensity
and consistent illumination with a higher service life compared to Xenon light sources. It also minimizes unit
downtime and upkeep expenses making it economical and GREEN (Environmentally Friendly), provides
multi-spectral output, which improves the detection rate of small lesions.
Multispectral output enhanced mucosal vascular contrast display.
Long life, main lamp working time ≥10000 hours.
Electronic dimming technology.
Progressing a new standard in synergized solutions for precise
diagnosis and treatments in MIS
